FastDFS是一款开源的轻量级分布式文件系统纯C实现,支持Linux、FreeBSD等UNIX系统类google FS,不是通用的文件系统,只能通过专有API访问,目前提供了C、Java和PHP API为互联网应用量身定做,解决大容量文件存储问题,追求高性能和高扩展性FastDFS可以看做是基于文件的key value pair存储系统,称作分布式文件存储服务更为合适.它的主要功能包括:文件存储,文件同步和文件访问,以及高容量和负载平衡。主要解决了海量数据存储问题,特别适合以中小文件(建议范围:4KB < file_size <500MB)为载体的在线服务。

角色

FastDFS 系统有三个角色:跟踪服务器(Tracker Server)、存储服务器(Storage Server)和客户端(Client)。

  • Tracker Server:跟踪服务器,主要做调度工作,起到均衡的作用;负责管理所有的 storage server和 group,每个 storage 在启动后会连接 Tracker,告知自己所属 group 等信息,并保持周期性心跳。

  • Storage Server:存储服务器,主要提供容量和备份服务;以 group 为单位,每个 group 内可以有多台 storage server,数据互为备份。

  • Client:客户端,上传下载数据的服务器,也就是我们自己的项目所部署在的服务器。

其它术语

  • group

组, 也可称为卷。 同组内服务器上的文件是完全相同的 ,同一组内的storage server之间是对等的, 文件上传、 删除等操作可以在任意一台storage server上进行 。

  • meta data

meta data:文件相关属性,键值对( Key Value Pair) 方式,如:width=1024,heigth=768 。

单机文件系统的对比

文件系统 高可用 扩展 部署复杂程度 性能
单机文件系统 低,依赖于单机服务器,只要服务器崩溃,完全不可用。 低,要扩容只能停机增加硬盘。 当文件数量多到一定的程度,磁盘IO寻址操作将会成为瓶颈
分布式文件系统 高,一个group内的服务器崩溃后,group内的其他storage将接管服务。 高,可以不停机增加group机器。 高,部署较复杂 高,通过集群或者分布式的方式分担服务器的压力。

其他文件系统的对比

指标 适合类型 文件分布 系统性能 复杂度 FUSE POSIX 备份机制 通讯协议接口 社区支持 开发语言
FastDFS 4KB~500MB 小文件合并存储不分片处理 很高 简单 不支持 不支持 组内冗余备份 Api HTTP 国内用户群 C语言
TFS 所有文件 小文件合并,以block组织分片 复杂 不支持 Block存储多份,主辅灾备 API http C++
MFS 大于64K 分片存储 Master占内存多 支持 支持 多点备份动态冗余 使用fuse挂在 较多 Perl
HDFS 大文件 大文件分片分块存储 简单 支持 支持 多副本 原生api 较多 Java
Ceph 对象文件块 OSD一主多从 复杂 支持 支持 多副本 原生api 较少 C++
MogileFS 海量小图片 复杂 可以支持 不支持 动态冗余 原生api 文档少 Perl
ClusterFS 大文件 简单 支持 支持 C

结构图

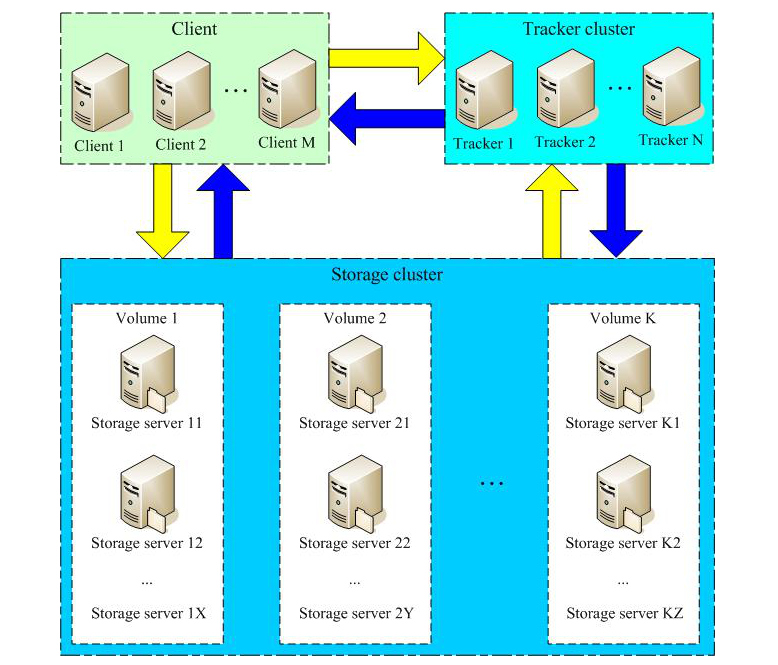

结构图

流程图

  • 上传

上传

FastDFS向使用者提供基本文件访问接口,比如upload、download、append、delete等,以客户端库的方式提供给用户使用。

Storage Server会定期的向Tracker Server发送自己的存储信息。当Tracker Server Cluster中的Tracker Server不止一个时,各个Tracker之间的关系是对等的,所以客户端上传时可以选择任意一个Tracker。

当Tracker收到客户端上传文件的请求时,会为该文件分配一个可以存储文件的group,当选定了group后就要决定给客户端分配group中的哪一个storage server。当分配好storage server后,客户端向storage发送写文件请求,storage将会为文件分配一个数据存储目录。然后为文件分配一个fileid,最后根据以上的信息生成文件名存储文件。

  • 文件同步

写文件时,客户端将文件写至group内一个storage server即认为写文件成功,storage server写完文件后,会由后台线程将文件同步至同group内其他的storage server。

每个storage写文件后,同时会写一份binlog,binlog里不包含文件数据,只包含文件名等元信息,这份binlog用于后台同步,storage会记录向group内其他storage同步的进度,以便重启后能接上次的进度继续同步;进度以时间戳的方式进行记录,所以最好能保证集群内所有server的时钟保持同步。

storage的同步进度会作为元数据的一部分汇报到tracker上,tracke在选择读storage的时候会以同步进度作为参考。

  • 下载

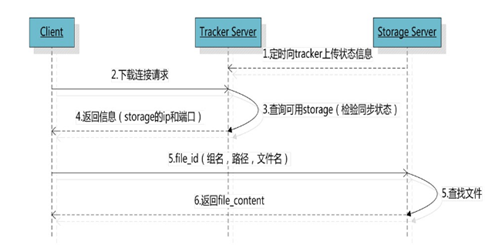

下载

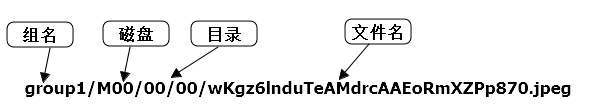

客户端uploadfile成功后,会拿到一个storage生成的文件名,接下来客户端根据这个文件名即可访问到该文件。跟upload file一样,在downloadfile时客户端可以选择任意tracker server。tracker发送download请求给某个tracker,必须带上文件名信息,tracke从文件名中解析出文件的group、大小、创建时间等信息,然后为该请求选择一个storage用来服务读请求。

服务搭建

架构图

架构图

主机列表

主机名 IP 角色 默认端口 是否安装nginx
centos-vm1 192.168.134.111 tracker 22122,8080 N
centos-vm2 192.168.134.112 tracker 22122,8080 N
centos-vm3 192.168.134.113 storage 23000,8888 Y
centos-vm4 192.168.134.114 storage 23000,8888 Y

安装

1. 安装依赖包

1
yum install -y gcc gcc-c++ pcre-devel zlib zlib-devel unzip openssl openssl-devel

2. 下载源码及依赖库

下载链接:

libfastcommon

FastDFS

3. 编译安装

libfastcommon

1
2
3
cd /opt
unzip libfastcommon-master.zip
cd libfastcommon-master && ./make.sh && ./make.sh install

FastDFS

1
2
3
cd /opt
unzip fastdfs-master.zip
cd fastdfs-master && ./make.sh && ./make.sh install

fastdfs支持以service/systemd方式管理服务,但请勿自定义systemd的service配置。

4. 服务管理

1
2
systemctl start/stop/restart/status fdfs_storaged
systemctl start/stop/restart/status fdfs_trackerd

5. 重要目录及文件路径

  • home目录(自定义):/opt/fastdfs

  • config目录(有模板,可自定义):/etc/fdfs

  • data目录:/opt/fastdfs/data

  • log目录:/opt/fastdfs/log

  • storage配置文件:/etc/fdfs/storage.conf

  • tracker配置文件:/etc/fdfs/tracker.conf

  • tracker记录storage id配置文件(可选):/etc/fdfs/storage_ids.conf

6. 配置文件详解

  • tracker.conf

关键配置参数:

bind_addr

port

base_path

store_path0

http.server_port

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
# is this config file disabled
# false for enabled
# true for disabled
disabled=false
# 这个配置文件是否不生效,呵呵(改成是否生效是不是会让人感觉好点呢?) false 为生效(否则不生效) true反之

# bind an address of this host
# empty for bind all addresses of this host
bind_addr=
# 是否绑定IP,
# bind_addr= 后面为绑定的IP地址 (常用于服务器有多个IP但只希望一个IP提供服务)。如果不填则表示所有的(一般不填就OK),相信较熟练的SA都常用到类似功能,很多系统和应用都有

# the tracker server port
port=22122
# 提供服务的端口,不作过多解释了

# connect timeout in seconds
# default value is 30s
connect_timeout=30
#连接超时时间,针对socket套接字函数connect

# network timeout in seconds
network_timeout=60
# tracker server的网络超时,单位为秒。发送或接收数据时,如果在超时时间后还不能发送或接收数据,则本次网络通信失败。

# the base path to store data and log files
base_path=/opt/fastdfs
# base_path 目录地址(根目录必须存在,子目录会自动创建)
# 附目录说明:
tracker server目录及文件结构:
${base_path}
|__data
| |__storage_groups.dat:存储分组信息
| |__storage_servers.dat:存储服务器列表
|__logs
|__trackerd.log:tracker server日志文件

数据文件storage_groups.dat和storage_servers.dat中的记录之间以换行符(\n)分隔,字段之间以西文逗号(,)分隔。
storage_groups.dat中的字段依次为:
1. group_name:组名
2. storage_port:storage server端口号

storage_servers.dat中记录storage server相关信息,字段依次为:
1. group_name:所属组名
2. ip_addr:ip地址
3. status:状态
4. sync_src_ip_addr:向该storage server同步已有数据文件的源服务器
5. sync_until_timestamp:同步已有数据文件的截至时间(UNIX时间戳)
6. stat.total_upload_count:上传文件次数
7. stat.success_upload_count:成功上传文件次数
8. stat.total_set_meta_count:更改meta data次数
9. stat.success_set_meta_count:成功更改meta data次数
10. stat.total_delete_count:删除文件次数
11. stat.success_delete_count:成功删除文件次数
12. stat.total_download_count:下载文件次数
13. stat.success_download_count:成功下载文件次数
14. stat.total_get_meta_count:获取meta data次数
15. stat.success_get_meta_count:成功获取meta data次数
16. stat.last_source_update:最近一次源头更新时间(更新操作来自客户端)
17. stat.last_sync_update:最近一次同步更新时间(更新操作来自其他storage server的同步)

# max concurrent connections this server supported
# max_connections worker threads start when this service startup
max_connections=256
# 系统提供服务时的最大连接数。对于V1.x,因一个连接由一个线程服务,也就是工作线程数。
# 对于V2.x,最大连接数和工作线程数没有任何关系

# work thread count, should <= max_connections
# default value is 4
# since V2.00
# V2.0引入的这个参数,工作线程数,通常设置为CPU数
work_threads=4

# the method of selecting group to upload files
# 0: round robin
# 1: specify group
# 2: load balance, select the max free space group to upload file
store_lookup=2
# 上传组(卷) 的方式 0:轮询方式 1: 指定组 2: 平衡负载(选择最大剩余空间的组(卷)上传)
# 这里如果在应用层指定了上传到一个固定组,那么这个参数被绕过

# which group to upload file
# when store_lookup set to 1, must set store_group to the group name
store_group=group2
# 当上一个参数设定为1 时 (store_lookup=1,即指定组名时),必须设置本参数为系统中存在的一个组名。如果选择其他的上传方式,这个参数就没有效了。

# which storage server to upload file
# 0: round robin (default)
# 1: the first server order by ip address
# 2: the first server order by priority (the minimal)
store_server=0
# 选择哪个storage server 进行上传操作(一个文件被上传后,这个storage server就相当于这个文件的storage server源,会对同组的storage server推送这个文件达到同步效果)
# 0: 轮询方式
# 1: 根据ip 地址进行排序选择第一个服务器(IP地址最小者)
# 2: 根据优先级进行排序(上传优先级由storage server来设置,参数名为upload_priority)

# which path(means disk or mount point) of the storage server to upload file
# 0: round robin
# 2: load balance, select the max free space path to upload file
store_path=0
# 选择storage server 中的哪个目录进行上传。storage server可以有多个存放文件的base path(可以理解为多个磁盘)。
# 0: 轮流方式,多个目录依次存放文件
# 2: 选择剩余空间最大的目录存放文件(注意:剩余磁盘空间是动态的,因此存储到的目录或磁盘可能也是变化的)

# which storage server to download file
# 0: round robin (default)
# 1: the source storage server which the current file uploaded to
download_server=0
# 选择哪个 storage server 作为下载服务器
# 0: 轮询方式,可以下载当前文件的任一storage server
# 1: 哪个为源storage server 就用哪一个 (前面说过了这个storage server源 是怎样产生的) 就是之前上传到哪个storage server服务器就是哪个了

# reserved storage space for system or other applications.
# if the free(available) space of any stoarge server in
# a group <= reserved_storage_space,
# no file can be uploaded to this group.
# bytes unit can be one of follows:
### G or g for gigabyte(GB)
### M or m for megabyte(MB)
### K or k for kilobyte(KB)
### no unit for byte(B)
### XX.XX% as ratio such as reserved_storage_space = 10%
reserved_storage_space = 10%
# storage server 上保留的空间,保证系统或其他应用需求空间。可以用绝对值或者百分比(V4开始支持百分比方式)。
#(指出 如果同组的服务器的硬盘大小一样,以最小的为准,也就是只要同组中有一台服务器达到这个标准了,这个标准就生效,原因就是因为他们进行备份)

#standard log level as syslog, case insensitive, value list:
### emerg for emergency
### alert
### crit for critical
### error
### warn for warning
### notice
### info
### debug
log_level=info
# 选择日志级别(日志写在哪?看前面的说明了,有目录介绍哦 呵呵)

#unix group name to run this program,
#not set (empty) means run by the group of current user
run_by_group=
# 操作系统运行FastDFS的用户组 (不填 就是当前用户组,哪个启动进程就是哪个)

#unix username to run this program,
#not set (empty) means run by current user
run_by_user=
# 操作系统运行FastDFS的用户 (不填 就是当前用户,哪个启动进程就是哪个)

# allow_hosts can ocur more than once, host can be hostname or ip address,
# "*" means match all ip addresses, can use range like this: 10.0.1.[1-15,20] or
# host[01-08,20-25].domain.com, for example:
# allow_hosts=10.0.1.[1-15,20]
# allow_hosts=host[01-08,20-25].domain.com
allow_hosts=*
# 可以连接到此 tracker server 的ip范围(对所有类型的连接都有影响,包括客户端,storage server)

# sync log buff to disk every interval seconds
# default value is 10 seconds
sync_log_buff_interval = 10
# 同步或刷新日志信息到硬盘的时间间隔,单位为秒
# 注意:tracker server 的日志不是时时写硬盘的,而是先写内存。

# check storage server alive interval
check_active_interval = 120
# 检测 storage server 存活的时间隔,单位为秒。
# storage server定期向tracker server 发心跳,如果tracker server在一个check_active_interval内还没有收到storage server的一次心跳,那边将认为该storage server已经下线。所以本参数值必须大于storage server配置的心跳时间间隔。通常配置为storage server心跳时间间隔的2倍或3倍。

# thread stack size, should > 512KB
# default value is 1MB
thread_stack_size=1MB
# 线程栈的大小。FastDFS server端采用了线程方式。更正一下,tracker server线程栈不应小于64KB,不是512KB。
# 线程栈越大,一个线程占用的系统资源就越多。如果要启动更多的线程(V1.x对应的参数为max_connections,
V2.0为work_threads),可以适当降低本参数值。

# auto adjust when the ip address of the storage server changed
# default value is true
storage_ip_changed_auto_adjust=true
# 这个参数控制当storage server IP地址改变时,集群是否自动调整。注:只有在storage server进程重启时才完成自动调整。

# storage sync file max delay seconds
# default value is 86400 seconds (one day)
# since V2.00
storage_sync_file_max_delay = 86400
# V2.0引入的参数。存储服务器之间同步文件的最大延迟时间,缺省为1天。根据实际情况进行调整
# 注:本参数并不影响文件同步过程。本参数仅在下载文件时,判断文件是否已经被同步完成的一个阀值(经验值)

# the max time of storage sync a file
# default value is 300 seconds
# since V2.00
storage_sync_file_max_time = 300
# V2.0引入的参数。存储服务器同步一个文件需要消耗的最大时间,缺省为300s,即5分钟。
# 注:本参数并不影响文件同步过程。本参数仅在下载文件时,作为判断当前文件是否被同步完成的一个阀值(经验值)

# if use a trunk file to store several small files
# default value is false
# since V3.00
use_trunk_file = false
# V3.0引入的参数。是否使用小文件合并存储特性,缺省是关闭的。

# the min slot size, should <= 4KB
# default value is 256 bytes
# since V3.00
slot_min_size = 256
# V3.0引入的参数。
# trunk file分配的最小字节数。比如文件只有16个字节,系统也会分配slot_min_size个字节。

# the max slot size, should > slot_min_size
# store the upload file to trunk file when it's size <= this value
# default value is 16MB
# since V3.00
slot_max_size = 16MB
# V3.0引入的参数。
# 只有文件大小<=这个参数值的文件,才会合并存储。如果一个文件的大小大于这个参数值,将直接保存到一个文件中(即不采用合并存储方式)。

# the trunk file size, should >= 4MB
# default value is 64MB
# since V3.00
trunk_file_size = 64MB
# V3.0引入的参数。
# 合并存储的trunk file大小,至少4MB,缺省值是64MB。不建议设置得过大。

# if create trunk file advancely
# default value is false
trunk_create_file_advance = false
# 是否提前创建trunk file。只有当这个参数为true,下面3个以trunk_create_file_打头的参数才有效。

# the time base to create trunk file
# the time format: HH:MM
# default value is 02:00
trunk_create_file_time_base = 02:00
# 提前创建trunk file的起始时间点(基准时间),02:00表示第一次创建的时间点是凌晨2点。

# the interval of create trunk file, unit: second
# default value is 38400 (one day)
trunk_create_file_interval = 86400
# 创建trunk file的时间间隔,单位为秒。如果每天只提前创建一次,则设置为86400

# the threshold to create trunk file
# when the free trunk file size less than the threshold, will create
# the trunk files
# default value is 0
trunk_create_file_space_threshold = 20G
# 提前创建trunk file时,需要达到的空闲trunk大小
# 比如本参数为20G,而当前空闲trunk为4GB,那么只需要创建16GB的trunk file即可。

# if check trunk space occupying when loading trunk free spaces
# the occupied spaces will be ignored
# default value is false
# since V3.09
# NOTICE: set this parameter to true will slow the loading of trunk spaces
# when startup. you should set this parameter to true when neccessary.
trunk_init_check_occupying = false
#trunk初始化时,是否检查可用空间是否被占用

# if ignore storage_trunk.dat, reload from trunk binlog
# default value is false
# since V3.10
# set to true once for version upgrade when your version less than V3.10
trunk_init_reload_from_binlog = false
# 是否无条件从trunk binlog中加载trunk可用空间信息
# FastDFS缺省是从快照文件storage_trunk.dat中加载trunk可用空间,
# 该文件的第一行记录的是trunk binlog的offset,然后从binlog的offset开始加载

# if use storage ID instead of IP address
# default value is false
# since V4.00
use_storage_id = false
# 是否使用server ID作为storage server标识

# specify storage ids filename, can use relative or absolute path
# since V4.00
storage_ids_filename = storage_ids.conf
# use_storage_id 设置为true,才需要设置本参数
# 在文件中设置组名、server ID和对应的IP地址,参见源码目录下的配置示例:conf/storage_ids.conf

# if store slave file use symbol link
# default value is false
# since V4.01
store_slave_file_use_link = false
# 存储从文件是否采用symbol link(符号链接)方式
# 如果设置为true,一个从文件将占用两个文件:原始文件及指向它的符号链接。

# if rotate the error log every day
# default value is false
# since V4.02
rotate_error_log = false
# 是否定期轮转error log,目前仅支持一天轮转一次

# rotate error log time base, time format: Hour:Minute
# Hour from 0 to 23, Minute from 0 to 59
# default value is 00:00
# since V4.02
error_log_rotate_time=00:00
# error log定期轮转的时间点,只有当rotate_error_log设置为true时有效

# rotate error log when the log file exceeds this size
# 0 means never rotates log file by log file size
# default value is 0
# since V4.02
rotate_error_log_size = 0
# error log按大小轮转
# 设置为0表示不按文件大小轮转,否则当error log达到该大小,就会轮转到新文件中

# 以下是关于http的设置了 默认编译是不生效的 要求更改 #WITH_HTTPD=1 将 注释#去掉 再编译
# 关于http的应用 说实话 不是很了解 没有见到 相关说明 ,望 版主可以完善一下 以下是字面解释了
#HTTP settings
http.disabled=false # HTTP服务是否不生效
http.server_port=8080 # HTTP服务端口


#use "#include" directive to include http other settiongs
##include http.conf # 如果加载http.conf的配置文件 去掉第一个#
  • storage.conf

关键配置参数:

group_name

bind_addr

port

base_path

store_path0

tracker_server

http.server_port

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
# is this config file disabled
# false for enabled
# true for disabled
disabled=false
#同上文了 就不多说了

# the name of the group this storage server belongs to
group_name=group1
# 指定 此 storage server 所在 组(卷)

# bind an address of this host
# empty for bind all addresses of this host
bind_addr=
# 同上文

# if bind an address of this host when connect to other servers
# (this storage server as a client)
# true for binding the address configed by above parameter: "bind_addr"
# false for binding any address of this host
client_bind=true
# bind_addr通常是针对server的。当指定bind_addr时,本参数才有效。
# 本storage server作为client连接其他服务器(如tracker server、其他storage server),是否绑定bind_addr。

# the storage server port
port=23000
# storage server服务端口

# connect timeout in seconds
# default value is 30s
connect_timeout=30
#连接超时时间,针对socket套接字函数connect

# network timeout in seconds
network_timeout=60
# storage server 网络超时时间,单位为秒。发送或接收数据时,如果在超时时间后还不能发送或接收数据,则本次网络通信失败。

# heart beat interval in seconds
heart_beat_interval=30
# 心跳间隔时间,单位为秒 (这里是指主动向tracker server 发送心跳)

# disk usage report interval in seconds
stat_report_interval=60
# storage server向tracker server报告磁盘剩余空间的时间间隔,单位为秒。


# the base path to store data and log files
base_path=/opt/fastdfs
# base_path 目录地址,根目录必须存在 子目录会自动生成 (注 :这里不是上传的文件存放的地址,之前是的,在某个版本后更改了)
# 目录结构 因为 版主没有更新到 论谈上 这里就不发了 大家可以看一下置顶贴:

# max concurrent connections server supported
# max_connections worker threads start when this service startup
max_connections=256
# 同上文

# work thread count, should <= max_connections
# default value is 4
# since V2.00
# V2.0引入的这个参数,工作线程数,通常设置为CPU数
work_threads=4

# the buff size to recv / send data
# default value is 64KB
# since V2.00
buff_size = 256KB
# V2.0引入本参数。设置队列结点的buffer大小。工作队列消耗的内存大小 = buff_size * max_connections
# 设置得大一些,系统整体性能会有所提升。
# 消耗的内存请不要超过系统物理内存大小。另外,对于32位系统,请注意使用到的内存不要超过3GB

# if read / write file directly
# if set to true, open file will add the O_DIRECT flag to avoid file caching
# by the file system. be careful to set this parameter.
# default value is false
disk_rw_direct = false
# V2.09引入本参数。设置为true,表示不使用操作系统的文件内容缓冲特性。
# 如果文件数量很多,且访问很分散,可以考虑将本参数设置为true

# if disk read / write separated
## false for mixed read and write
## true for separated read and write
# default value is true
# since V2.00
disk_rw_separated = true
# V2.0引入本参数。磁盘IO读写是否分离,缺省是分离的。

# disk reader thread count per store base path
# for mixed read / write, this parameter can be 0
# default value is 1
# since V2.00
disk_reader_threads = 1
# V2.0引入本参数。针对单个存储路径的读线程数,缺省值为1。
# 读写分离时,系统中的读线程数 = disk_reader_threads * store_path_count
# 读写混合时,系统中的读写线程数 = (disk_reader_threads + disk_writer_threads) * store_path_count

# disk writer thread count per store base path
# for mixed read / write, this parameter can be 0
# default value is 1
# since V2.00
disk_writer_threads = 1
# V2.0引入本参数。针对单个存储路径的写线程数,缺省值为1。
# 读写分离时,系统中的写线程数 = disk_writer_threads * store_path_count
# 读写混合时,系统中的读写线程数 = (disk_reader_threads + disk_writer_threads) * store_path_count

# when no entry to sync, try read binlog again after X milliseconds
# 0 for try again immediately (not need to wait)
sync_wait_msec=200
# 同步文件时,如果从binlog中没有读到要同步的文件,休眠N毫秒后重新读取。0表示不休眠,立即再次尝试读取。
# 出于CPU消耗考虑,不建议设置为0。如何希望同步尽可能快一些,可以将本参数设置得小一些,比如设置为10ms

# after sync a file, usleep milliseconds
# 0 for sync successively (never call usleep)
sync_interval=0
# 同步上一个文件后,再同步下一个文件的时间间隔,单位为毫秒,0表示不休眠,直接同步下一个文件。

# sync start time of a day, time format: Hour:Minute
# Hour from 0 to 23, Minute from 0 to 59
sync_start_time=00:00

# sync end time of a day, time format: Hour:Minute
# Hour from 0 to 23, Minute from 0 to 59
sync_end_time=23:59
# 上面二个一起解释。允许系统同步的时间段 (默认是全天) 。一般用于避免高峰同步产生一些问题而设定,相信sa都会明白

# write to the mark file after sync N files
# default value is 500
write_mark_file_freq=500
# 同步完N个文件后,把storage的mark文件同步到磁盘
# 注:如果mark文件内容没有变化,则不会同步

# path(disk or mount point) count, default value is 1
store_path_count=1
# 存放文件时storage server支持多个路径(例如磁盘)。这里配置存放文件的基路径数目,通常只配一个目录。

# store_path#, based 0, if store_path0 not exists, it's value is base_path
# the paths must be exist
store_path0=/opt/fastdfs
#store_path1=/opt/fastdfs2
# 逐一配置store_path个路径,索引号基于0。注意配置方法后面有0,1,2 ......,需要配置0到store_path - 1。
# 如果不配置base_path0,那边它就和base_path对应的路径一样。

# subdir_count * subdir_count directories will be auto created under each
# store_path (disk), value can be 1 to 256, default value is 256
subdir_count_per_path=256
# FastDFS存储文件时,采用了两级目录。这里配置存放文件的目录个数 (系统的存储机制,大家看看文件存储的目录就知道了)
# 如果本参数只为N(如:256),那么storage server在初次运行时,会自动创建 N * N 个存放文件的子目录。

# tracker_server can ocur more than once, and tracker_server format is
# "host:port", host can be hostname or ip address
tracker_server=10.62.164.84:22122
tracker_server=10.62.245.170:22122
# tracker_server 的列表 要写端口的哦 (再次提醒是主动连接tracker_server )
# 有多个tracker server时,每个tracker server写一行

#standard log level as syslog, case insensitive, value list:
### emerg for emergency
### alert
### crit for critical
### error
### warn for warning
### notice
### info
### debug
log_level=info
# 日志级别不多说

#unix group name to run this program,
#not set (empty) means run by the group of current user
run_by_group=
# 同上文了

#unix username to run this program,
#not set (empty) means run by current user
run_by_user=
# 同上文了 (提醒注意权限 如果和 webserver不搭 可以会产生错误 哦)

# allow_hosts can ocur more than once, host can be hostname or ip address,
# "*" means match all ip addresses, can use range like this: 10.0.1.[1-15,20] or
# host[01-08,20-25].domain.com, for example:
# allow_hosts=10.0.1.[1-15,20]
# allow_hosts=host[01-08,20-25].domain.com
allow_hosts=*
# 允许连接本storage server的IP地址列表 (不包括自带HTTP服务的所有连接)
# 可以配置多行,每行都会起作用

# the mode of the files distributed to the data path
# 0: round robin(default)
# 1: random, distributted by hash code
file_distribute_path_mode=0
# 文件在data目录下分散存储策略。
# 0: 轮流存放,在一个目录下存储设置的文件数后(参数file_distribute_rotate_count中设置文件数),使用下一个目录进行存储。
# 1: 随机存储,根据文件名对应的hash code来分散存储。

# valid when file_distribute_to_path is set to 0 (round robin),
# when the written file count reaches this number, then rotate to next path
# default value is 100
file_distribute_rotate_count=100
# 当上面的参数file_distribute_path_mode配置为0(轮流存放方式)时,本参数有效。
# 当一个目录下的文件存放的文件数达到本参数值时,后续上传的文件存储到下一个目录中。

# call fsync to disk when write big file
# 0: never call fsync
# other: call fsync when written bytes >= this bytes
# default value is 0 (never call fsync)
fsync_after_written_bytes=0
# 当写入大文件时,每写入N个字节,调用一次系统函数fsync将内容强行同步到硬盘。0表示从不调用fsync

# sync log buff to disk every interval seconds
# default value is 10 seconds
sync_log_buff_interval=10
# 同步或刷新日志信息到硬盘的时间间隔,单位为秒
# 注意:storage server 的日志信息不是时时写硬盘的,而是先写内存。

# sync binlog buff / cache to disk every interval seconds
# this parameter is valid when write_to_binlog set to 1
# default value is 60 seconds
sync_binlog_buff_interval=60
# 同步binglog(更新操作日志)到硬盘的时间间隔,单位为秒
# 本参数会影响新上传文件同步延迟时间

# sync storage stat info to disk every interval seconds
# default value is 300 seconds
sync_stat_file_interval=300
# 把storage的stat文件同步到磁盘的时间间隔,单位为秒。
# 注:如果stat文件内容没有变化,不会进行同步

# thread stack size, should >= 512KB
# default value is 512KB
thread_stack_size=512KB
# 线程栈的大小。FastDFS server端采用了线程方式。
# 对于V1.x,storage server线程栈不应小于512KB;对于V2.0,线程栈大于等于128KB即可。
# 线程栈越大,一个线程占用的系统资源就越多。
# 对于V1.x,如果要启动更多的线程(max_connections),可以适当降低本参数值。

# the priority as a source server for uploading file.
# the lower this value, the higher its uploading priority.
# default value is 10
upload_priority=10
# 本storage server作为源服务器,上传文件的优先级,可以为负数。值越小,优先级越高。这里就和 tracker.conf 中store_server= 2时的配置相对应了

# if check file duplicate, when set to true, use FastDHT to store file indexes
# 1 or yes: need check
# 0 or no: do not check
# default value is 0
check_file_duplicate=0
# 是否检测上传文件已经存在。如果已经存在,则不存在文件内容,建立一个符号链接以节省磁盘空间。
# 这个应用要配合FastDHT 使用,所以打开前要先安装FastDHT
# 1或yes 是检测,0或no 是不检测

# file signature method for check file duplicate
## hash: four 32 bits hash code
## md5: MD5 signature
# default value is hash
# since V4.01
file_signature_method=hash
# 文件去重时,文件内容的签名方式:
## hash: 4个hash code
## md5:MD5

# namespace for storing file indexes (key-value pairs)
# this item must be set when check_file_duplicate is true / on
key_namespace=FastDFS
# 当上个参数设定为1 或 yes时 (true/on也是可以的) , 在FastDHT中的命名空间。

# set keep_alive to 1 to enable persistent connection with FastDHT servers
# default value is 0 (short connection)
keep_alive=0
# 与FastDHT servers 的连接方式 (是否为持久连接) ,默认是0(短连接方式)。可以考虑使用长连接,这要看FastDHT server的连接数是否够用。

# 下面是关于FastDHT servers 的设定 需要对FastDHT servers 有所了解,这里只说字面意思了
# you can use "#include filename" (not include double quotes) directive to
# load FastDHT server list, when the filename is a relative path such as
# pure filename, the base path is the base path of current/this config file.
# must set FastDHT server list when check_file_duplicate is true / on
# please see INSTALL of FastDHT for detail
##include /opt/fastdht/conf/fdht_servers.conf
# 可以通过 #include filename 方式来加载 FastDHT servers 的配置,装上FastDHT就知道该如何配置啦。
# 同样要求 check_file_duplicate=1 时才有用,不然系统会忽略
# fdht_servers.conf 记载的是 FastDHT servers 列表

# if log to access log
# default value is false
# since V4.00
use_access_log = false
# 是否将文件操作记录到access log

# if rotate the access log every day
# default value is false
# since V4.00
rotate_access_log = false
# 是否定期轮转access log,目前仅支持一天轮转一次

# rotate access log time base, time format: Hour:Minute
# Hour from 0 to 23, Minute from 0 to 59
# default value is 00:00
# since V4.00
access_log_rotate_time=00:00
# access log定期轮转的时间点,只有当rotate_access_log设置为true时有效

# if rotate the error log every day
# default value is false
# since V4.02
rotate_error_log = false
# 是否定期轮转error log,目前仅支持一天轮转一次

# rotate error log time base, time format: Hour:Minute
# Hour from 0 to 23, Minute from 0 to 59
# default value is 00:00
# since V4.02
error_log_rotate_time=00:00
# error log定期轮转的时间点,只有当rotate_error_log设置为true时有效

# rotate access log when the log file exceeds this size
# 0 means never rotates log file by log file size
# default value is 0
# since V4.02
rotate_access_log_size = 0
# access log按文件大小轮转
# 设置为0表示不按文件大小轮转,否则当access log达到该大小,就会轮转到新文件中

# rotate error log when the log file exceeds this size
# 0 means never rotates log file by log file size
# default value is 0
# since V4.02
rotate_error_log_size = 0
# error log按文件大小轮转
# 设置为0表示不按文件大小轮转,否则当error log达到该大小,就会轮转到新文件中

# if skip the invalid record when sync file
# default value is false
# since V4.02
file_sync_skip_invalid_record=false
# 文件同步的时候,是否忽略无效的binlog记录

下面是http的配置了。如果系统较大,这个服务有可能支持不了,可以自行换一个webserver,我喜欢lighttpd,当然ng也很好了。具体不说明了。相应这一块的说明大家都懂,不明白见上文。
#HTTP settings
http.disabled=false

# the port of the web server on this storage server
http.server_port=8888

http.trunk_size=256KB
# http.trunk_size表示读取文件内容的buffer大小(一次读取的文件内容大小),也就是回复给HTTP client的块大小。


# use the ip address of this storage server if domain_name is empty,
# else this domain name will ocur in the url redirected by the tracker server
http.domain_name=
# storage server上web server域名,通常仅针对单独部署的web server。这样URL中就可以通过域名方式来访问storage server上的文件了,
# 这个参数为空就是IP地址的方式。

#use "#include" directive to include HTTP other settiongs
##include http.conf

7. 文件上传测试(可选)

修改tracker服务器中的客户端配置文件client.conf

1
2
3
# cd /etc/fdfs
# cp client.conf.sample client.conf
# vim client.conf

修改如下配置即可,其它默认。

1
2
3
4
5
6
# Client 的数据和日志目录
base_path=/opt/fastdfs

# Tracker端口
tracker_server=centos-vm1:22122
tracker_server=centos-vm2:22122

上传测试

1
2
[root@centos-vm2 ~]# fdfs_upload_file /etc/fdfs/client.conf  onsul-arch.png
group1/M00/00/00/wKiGcVvr4SOAT689AAHE6Wf3gu4403.png

上传成功后返回文件ID号,返回的文件ID由group、存储目录、两级子目录、fileid、文件后缀名(由客户端指定,主要用于区分文件类型)拼接而成。

file_id

安装nginx(在storage节点上安装nginx,增加http下载支持)

上面将文件上传成功了,但我们无法下载。因此安装Nginx作为服务器以支持Http方式访问文件。同时,后面安装FastDFS的Nginx模块也需要Nginx环境。Nginx只需要安装到StorageServer所在的服务器即可,用于访问文件。

fastdfs-nginx-module 模块说明

FastDFS通过Tracker服务器,将文件放在Storage服务器存储, 但是同组存储服务器之间需要进行文件复制,有同步延迟的问题。假设Tracker服务器将文件上传到了storage1,上传成功后文件ID已经返回给客户端。此时FastDFS存储集群机制会将这个文件同步到同组存储storage2,在文件还没有复制完成的情况下,客户端如果用这个文件ID在storage2上取文件,就会出现文件无法访问的错误。而fastdfs-nginx-module可以重定向文件链接到源服务器取文件,避免客户端由于复制延迟导致的文件无法访问错误。

1. 下载

fastdfs-nginx-module

nginx-1.14.1

nginx-init服务/脚本

2. 安装nginx及module

1
2
3
4
5
cd /opt
unzip fastdfs-nginx-module-master.zip
tar -zxf nginx-1.14.1.tar.gz
cd nginx-1.14.1
./configure --prefix=/opt/nginx --add-module=/opt/fastdfs-nginx-module-master/src && make && make install

配置nginx为系统服务,在nginx-init服务/脚本页面按你的系统来设置服务/脚本,配置成系统服务。若nginx安装后的目录位置是自定义,需要注意自定义配置改sbin/nginx,config/nginx及pid文件指定路径。

3. 配置fastdfs storage

  • 配置mod_fastdfs.conf
1
cp /opt/fastdfs-nginx-module-master/src/mod_fastdfs.conf /etc/fdfs/

mod_fastdfs.conf

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
# 连接超时时间
connect_timeout=10

# Tracker Server
tracker_server=centos-vm1:22122
tracker_server=centos-vm2:22122

# StorageServer 默认端口
storage_server_port=23000

# 如果文件ID的uri中包含/group**,则要设置为true
url_have_group_name = true

# Storage 配置的store_path0路径,必须和storage.conf中的一致
store_path0=/opt/fastdfs
  • 复制 FastDFS 的部分配置文件到/etc/fdfs 目录
1
2
cd /opt/fastdfs-nginx-module-master/src/
cp anti-steal.jpg http.conf mime.types /etc/fdfs/

4. 配置nginx

建议在nginx/conf/conf.d建立独立配置文件,所以在nginx.conf中必须在http块处添加

1
include conf.d/*.conf

然后自定义配置文件conf.d/fastdfs.conf

1
2
3
4
5
6
7
8
9
10
server {

listen 80;
#server_name localhost;

location /group1/M00 {
root /opt/fastdfs/data;
ngx_fastdfs_module;
}
}

注:若在storage.conf中配置了store_path0独立的目录,此处location及对应的root请按实际填写,默认以上即可。listen 80端口值是要与 /etc/fdfs/storage.conf 中的http.server_port=80(前面改成80了)相对应。

5. 启动nginx

centos-7

1
systemctl daemon-reload && systemctl start nginx

centos-6

1
service nginx start

6. 重载fastdfs storage

1
systemctl restart fdfs_storaged

7. 访问或下载文件

直接通过http访问任意一台storage server节点上的nginx服务即可访问到刚才上传的文件链接,路径为上传文件返回的路径

http://192.168.134.113/group1/M00/00/00/wKiGcVvr4SOAT689AAHE6Wf3gu4403.png

由此可知,访问或下载文件可以做负责均衡(nginx本身实现,或haproxy粉的软件实现),上传也可通过多节点tracker实现负载均衡(LVS等)

权限控制

FastDFS的权限控制是在服务端开启token验证,客户端根据文件名、当前unix时间戳、秘钥获取token,在地址中带上token参数即可通过http方式访问文件。

1. 服务端开启token验证

修改/etc/fdfs/http.conf

1
2
3
4
5
6
7
8
9
10
11
设置为true表示开启token验证
http.anti_steal.check_token=true

设置token失效的时间单位为秒(s)
http.anti_steal.token_ttl=1800

密钥,跟客户端配置文件的fastdfs.http_secret_key保持一致
http.anti_steal.secret_key=FASTDFS1234567890

如果token检查失败,返回的页面
http.anti_steal.token_check_fail=/opt/fastdfs/page/403.html

记得重启fastdfs storage服务。

2. 配置客户端

客户端只需要设置如下两个参数即可,两边的密钥保持一致。

1
2
3
# token 防盗链功能
fastdfs.http_anti_steal_token=true
# 密钥

3. 客户端生成token

访问文件需要带上生成的token以及unix时间戳,所以返回的token是token和时间戳的拼接。之后,将token拼接在地址后即可访问:

1
http://192.168.134.113/group1/M00/00/00/wKiGcVvr4SOAT689AAHE6Wf3gu4403.png?token=078d370098b03e9020b82c829c205e1f&ts=1508141521

java生成token示例

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
 1     /**
2 * 获取访问服务器的token,拼接到地址后面
3 *
4 * @param filepath 文件路径 group1/M00/00/00/wKgzgFnkTPyAIAUGAAEoRmXZPp876.jpeg
5 * @param httpSecretKey 密钥
6 * @return 返回token,如: token=078d370098b03e9020b82c829c205e1f&ts=1508141521
7 */
8 public static String getToken(String filepath, String httpSecretKey){
9 // unix seconds
10 int ts = (int) Instant.now().getEpochSecond();
11 // token
12 String token = "null";
13 try {
14 token = ProtoCommon.getToken(getFilename(filepath), ts, httpSecretKey);
15 } catch (UnsupportedEncodingException e) {
16 e.printStackTrace();
17 } catch (NoSuchAlgorithmException e) {
18 e.printStackTrace();
19 } catch (MyException e) {
20 e.printStackTrace();
21 }
22
23 StringBuilder sb = new StringBuilder();
24 sb.append("token=").append(token);
25 sb.append("&ts=").append(ts);
26
27 return sb.toString();
28 }

注意事项:如果生成的token验证无法通过,请进行如下两项检查:

  • A. 确认调用token生成函数(ProtoCommon.getToken),传递的文件ID中没有包含group name。传递的文件ID格式形如:M00/00/00/wKgzgFnkTPyAIAUGAAEoRmXZPp876.jpeg

  • B. 确认服务器时间基本是一致的,注意服务器时间不能相差太多,不要相差到分钟级别。

对比下发现,如果系统文件隐私性较高,可以直接通过fastdfs-client提供的API去访问即可,不用再配置Nginx走http访问。配置Nginx的主要目的是为了快速访问服务器的文件(如图片),如果还要加权限验证,则需要客户端生成token,其实已经没有多大意义。关键是,这里我没找到FastDFS如何对部分资源加token验证,部分开放。

OK,以上就是使用FastDFS搭建文件系统并上传下载的过程。
